Description:

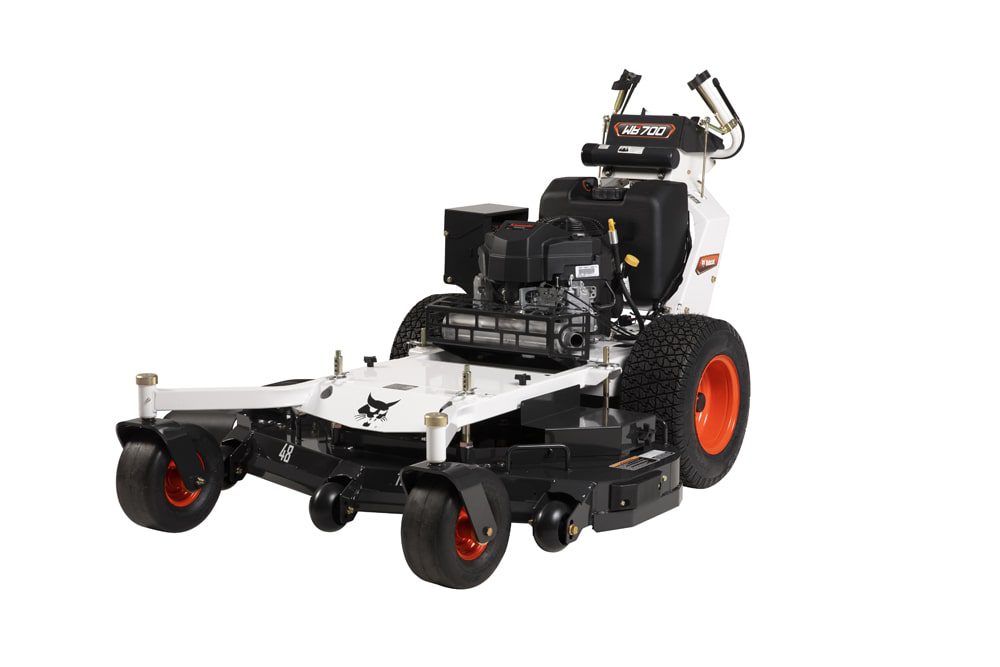

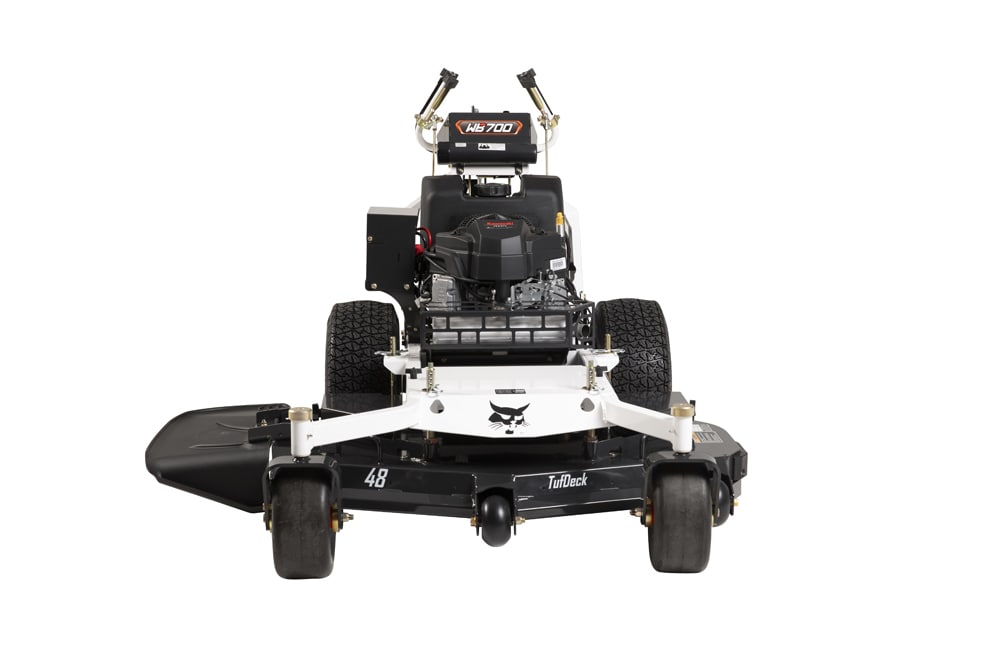

The WB700 is a commercial, mid-size walk-behind mower with a powerful hydraulic drive that fights operator fatigue and minimizes ground disturbance. Its compact size takes up less space on your trailer and gives you more precision for mowing around obstacles and highly landscaped environments.

Features:

High-Performance Engine

• Commercially proven Kawasaki FS-series engines
• Power Range: 14.5-18.5 hp
• Reliable performance for long hours and tough jobs

Commercial-Grade Transmission

• Innovative Hydro-Gear ZT-2800 hydrostatic transaxles
• Equipped with charge pumps
• Smooth operation with heavy-duty output torque
• Comfortable ground speeds of up to 6.5 mph

Commercial Cutting Capability

• Available cutting widths: 36, 48, or 52 inches
• TufDeck cutting system with durable, steel-fabricated spindle assemblies
• Designed to handle tough mowing in tight areas

20-Inch Drive Tires

• Large wheels for ample ground clearance
• Minimizes ground disturbance
• Enables smooth, easy maneuverability on tough terrain

Specification:

Engine

• Model: Kaw FS600V
• Horsepower: 18.5 hp (13.7 kW)
• Displacement: 36.8 cu. in. (603 cc)
• Fuel Capacity: 5.0 gal. (18.9 L)
• Air Filter: Dual Element

Electrical

• Charging System: 15 amp
• Clutch: 105 lbf. (467 N)

Deck

• Mower Deck: TufDeck Cutting System
• Width: 52.0 in. (1320 mm)
• Adjustable Anti-Scalp Rollers: 3
• Cutting Height: 1.5-4.5 in. (38-114 mm)
• Blade Tip Speed: 18,645 fpm @ 3550 Engine rpm
• Discharge Chute: Flexible Molded Polymer

Frame

• Front and Rear: 1.5- x 2.5-inch Steel Tubing; Welded Steel Reinforced Frame
• Machine Length: 78.0 in. (1981 mm)
• Machine Weight (wet): 832 lb. (377 kg)

Transmission

• Type: HG ZT-2800 Hydrostatic Transaxles With Charge Pumps
• Pump Displacement: 0.7 cu. in. (10 cc)
• Oil Capacity: 1.0 gal. (4.0 qt.)
• Forward Speed: 6.5 mph (10.5 km/hr.)
• Reverse Speed: 3.0 mph (4.8 km/hr.)

Wheels

• Drive Wheel Size: 20 x 8
• Front Caster Wheel Size: 11 x 6 Semi-pneumatic
• Caster Arm Attachment: Welded to Frame

Warranty

• 3-year/2,000-hour Limited Warranty

Width	Weight	Height	Length
0 Inch	832 Pounds	0 Inch	0 Inch
